Model

16-009

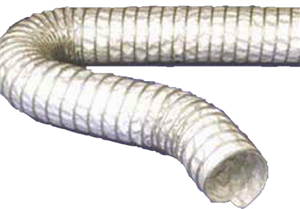

Image for HWHT-1000.png

HWHT-1000 - Ø 2'' to 36''

MD-MasterClip high-temperature Silicon coated glass fabric asbestos-free reinforced in galvanized or stainless steel wire.

Function:

Temperature range – 5°F to 1000°F. Suitable for vehicle exhaust systems; high-temperature diesel exhaust.
Properties:
  • Good tear resistance
  • Improved puncture resistance
  • Outstanding flex fatigue resistance
  • Medium chemical resistance to alkalis, acids, and solvent gases
  • Gas-tight
  • Light weight
  • Smooth inside, for optimum flow characteristics

Construction:

  • Material Hose Wall: special-coated high-temperature fabric
  • Asbestos-free
  • Reinforced by woven in stainless steel wire external helix: galvanized steel.

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
NF-ULOK-1000-05 1"H x 5"W x 13"D 25 lbs
MD-235-900-111 38"H x 38"W x 13"D 2 lbs
MD-235-800-111 34"H x 34"W x 13"D 2 lbs
MD-235-700-111 30"H x 30"W x 13"D 2 lbs
MD-235-600-111 26"H x 26"W x 13"D 2 lbs
MD-235-550-111 24"H x 24"W x 13"D 2 lbs
MD-235-500-111 22"H x 22"W x 13"D 2 lbs
MD-235-450-111 20"H x 20"W x 13"D 2 lbs
MD-235-400-111 18"H x 18"W x 13"D 2 lbs
MD-235-375-111 17"H x 17"W x 13"D 2 lbs
MD-235-350-111 16"H x 16"W x 13"D 2 lbs
MD-235-325-111 15"H x 15"W x 13"D 2 lbs
MD-235-315-111 "H x "W x 13"D 0 lbs
MD-235-300-111 14"H x 14"W x 13"D 2 lbs
MD-235-275-111 13"H x 13"W x 13"D 2 lbs
MD-235-250-111 12"H x 12"W x 13"D 2 lbs
MD-235-225-111 11"H x 11"W x 13"D 2 lbs
MD-235-215-111 "H x "W x 13"D 0 lbs
MD-235-200-111 10"H x 10"W x 13"D 2 lbs
MD-235-180-111 "H x "W x 13"D 0 lbs
MD-235-175-111 9"H x 9"W x 13"D 2 lbs
MD-235-170-111 "H x "W x 13"D 0 lbs
MD-235-160-111 8.4"H x 8.4"W x 13"D 2 lbs
MD-235-150-111 8"H x 8"W x 13"D 2 lbs
MD-235-140-111 7.5"H x 7.5"W x 13"D 2 lbs
MD-235-130-111 "H x "W x 13"D 0 lbs
MD-235-125-111***See NF-ULOK 7"H x 7"W x 13"D 2 lbs
MD-235-120-111 "H x "W x 13"D 0 lbs
MD-235-119-111 "H x "W x 13"D 0 lbs
MD-235-100-111 6"H x 6"W x 13"D 2 lbs
MD-235-090-111 5.5"H x 5.5"W x 13"D 2 lbs
MD-235-080-111 "H x "W x 13"D 0 lbs
MD-235-075-111 5"H x 5"W x 13"D 2 lbs
MD-235-070-111 "H x "W x 13"D 0 lbs
MD-235-065-111 "H x "W x 13"D 0 lbs
MD-235-063-111 4.5"H x 4.5"W x 13"D 2 lbs
MD-235-060-111 "H x "W x 13"D 0 lbs
MD-235-055-111 "H x "W x 13"D 0 lbs
MD-235-050-111 4"H x 4"W x 13"D 2 lbs

Key Buying Criteria:

  • Good tear resistance
  • Improved puncture resistance
  • Lightweight/flexible
  • Wear-resistant

Suitable For:

Top 5 contaminants/processes/applications:

  • Toxic fumes
  • Acidic chemicals
  • Gases
  • Vehicle Exhaust
  • Use with fumes between 5°F - 1000°F
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
MD-235-050-111 2" (50mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-055-111 2.2" (55mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-060-111 2.4" (60mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-063-111 2.5" (65mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-065-111 2.6" (65mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-070-111 2.80" (70mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-075-111 3" (75m)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-080-111 3.2" (80mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-090-111 3.5" (90mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-100-111 4" (100mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-119-111 4.4" (110mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-120-111 4.8" (120mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-125-111***See NF-ULOK 5" (125mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-130-111 5.2" (130mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-140-111 5.5" (140mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-150-111 6" (150mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-160-111 6.4" (162mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-170-111 6.8" (170mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-175-111 7" (175mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-180-111 7.2" (180mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-200-111 8" (200mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-215-111 8.6" (220mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-225-111 9" (230mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-250-111 10" (250mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-275-111 11" (280mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-300-111 12" (300mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-315-111 12.6" (320mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-325-111 13" (330mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-350-111 14" (350mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-375-111 15" (380mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-400-111 16" (400mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-450-111 18" (460mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-500-111 20" (510mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-550-111 22" (560mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-600-111 24" (660mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-700-111 28" (710mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-800-111 32" (810mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
MD-235-900-111 36" (915mm)Ø Master-Clip HT 1000 Hose.
  • 2-layer special coated high temperature fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible
  • Temp range – 5°F to 1000°F. Price per ft. (25' Length Minimum)
NF-ULOK-1000-05 5" (125mm)Ø flexible duct HT 1000°F - aluminum coated textile glass fabric.

Frequently bought together these options:

Part # Qty Description
DM-922-06.0-911 6" (150mm)Ø Master-Clip HT 1200 Hose.
  • 2-layer special coated high temp fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible - best 1000°F range flexible hose on the market
  • Also most widely used high temperature vehicle exhaust hose
  • Dynos and high performance engines
  • Temp range – 75°F to 1200°F. Price per ft. (25' Length Minimum)
  • r-Clip HT 1200 Hose, Price per ft. (10' Length Minimum)
DM-922-06.4-911 6.4" (162mm)Ø Master-Clip HT 1200 Hose.
  • 2-layer special coated high temp fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible - best 1000°F range flexible hose on the market
  • Also most widely used high temperature vehicle exhaust hose
  • Dynos and high performance engines
  • Temp range – 75°F to 1200°F. Price per ft. (25' Length Minimum)
  • r-Clip HT 1200 Hose, Price per ft. (10' Length Minimum)
DM-922-08.0-911 8" (200mm)Ø Master-Clip HT 1200 Hose.
  • 2-layer special coated high temp fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible - best 1000°F range flexible hose on the market
  • Also most widely used high temperature vehicle exhaust hose
  • Dynos and high performance engines
  • Temp range – 75°F to 1200°F. Price per ft. (25' Length Minimum)
  • r-Clip HT 1200 Hose, Price per ft. (10' Length Minimum)
Get My Instant Quote
Ext.

Technical Info Requested

This site is protected by reCAPTCHA Enterprise and the Google Privacy Policy and Terms of Service apply.
