Model

03-101

LF 50 - 170 CFM

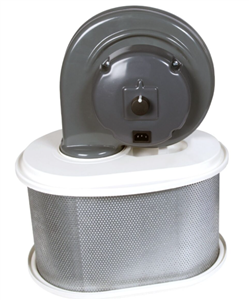

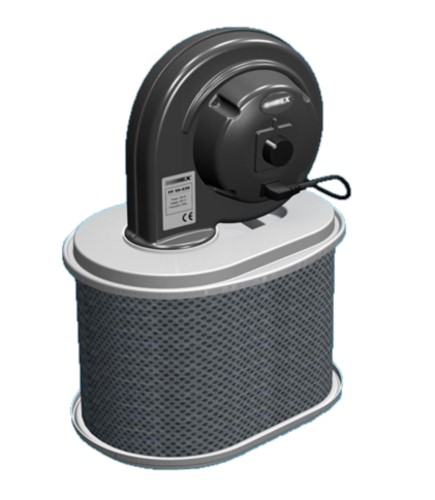

LF 50 - A portable filter unit that includes a Model FF 50 fan complete with speed control. The filter is available in (2) versions, Particle/Gas and Gas filter. With a max airflow rate is 170 CFM.

Function:

Portable work-station filter unit that collects particles/gases at the source to protect the user.

For ease of selection and installation, LF 50 is available in six complete kits. The LF 50 fan can be used without a filter, as a separate unit with a bracket combined with the Fumex range of small extractors.

It can also be used as a particular unit in combination with the LF VK bracket and the Fumex range of small extractors.

Construction:

All variants come complete with hose, connectors, and accessories.

The FF 50 fan has an EC motor with potentiometer for speed control, which makes it easy to continuously adjust the ventilation according to airflow
  • Damper installed
  • Flexible filter system consisting of filter and fan
  • Mobile trolley on lockable wheels with a bracket for point extraction
  • Power: 165 W
  • Frequency : 50-60 Hz
  • Voltage: 230V 1N~

Key Buying Criteria:

  • Quiet, and ideal for low profile operation
  • Large filter area allows for higher flow rate, and minimal load to the fan, all while reducing maintenance intervals
  • Variable flow rate allows for energy-saving efficiency, and prolonged functionality
  • Easy maneuverability makes the arm well suited for a variety of lab-based environments where precision is key
  • The unit is very low-profile, making it very usable in a variety of setups

Suitable For:

Top 5 contaminants/processes/applications:

  • Soldering
  • VOCs
  • Welding Fumes
  • Silica Dust
  • Metal Particulate
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
