Model

09-012

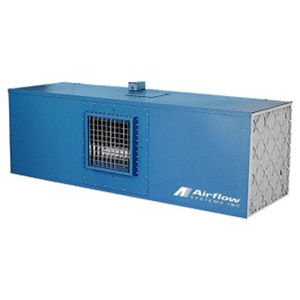

Image for t-140.jpg

T140 - 4500 CFM

T-140 models collect dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories with high efficiency, 2 stages of filtration. This model features a flow rate anywhere from 3600 - 4500 CFM.

Function:

Ideal for "Cross-Dilution" and filtration of airborne pollutants that can't be easily captured at source. The T-STYLE configuration allows the contaminated air to enter from both ends of the unit and the cleaned air to exit from the center of the housing. This allows the air to be filtered by twice the media resulting in a much lower "AIR-TO-CLOTH" ratio which in turn means greater filter life, quite often 2 to 4 times the average filter life of that of a regular uni-directional "Flow-Through" filter system. The center exhaust also allows for better dilution of the contaminated air, and in the case of large plants, it has an added energy-saving effect.

For your Safety, each HEPA H14 filter is delivered with a certificate and is leak tested. The efficiency is over 99.995% on particles and viruses which are under/over 0.16 micrometer (down to 0.01 micrometer). The Filters are manufactured in Europe by a HEPA H14 specialist, well known all over the world. This unit works on the principle of "clean-to-less-clean" air movement, which supplies clean filtered air to the occupants breathing zone through a pre-engineered diffusion hood explicitly designed for the application. An ultra-low noise fan draws the room air in at floor level where the air is least clean. The air is drawn in by a variable speed, centrifugal fan that allows the operator to control the flow based on the number of people in the room. The air passes through a silenced chamber engineered to dampen the associated noise generated by the air movement. A multi-stage filter module filters the contaminated air containing virus particles as small as 0.1 Micron (MicroMeters) to a purity level of 99.995%. Clean filtered air is returned to the indoor space through a low-noise duct and diffuser hood.

These "Free-Hanging" (also called "Packaged") units are mounted from most ceilings inside factories and industrial settings. Each air cleaner comes complete with 65% efficient washable and/or disposable filters.

Main Options:
  • Filter Options
  • Fan Upgrades
  • Motor Upgrades
  • Sound Attenuation
  • Pressure Gauges
  • Variable Frequency Drives

Construction:

  • 18 ga. steel cabinet
  • Powder-coated blue finish
  • (2) 4" (100mm) pleated 30% pleated pre-filters
  • (2) 65% bag filters (66 sq. ft. each)
  • 2 HP motor, 208-230/460/575/3/60Hz
  • 10 x 10 ball bearing belt drive blower

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
T140-2 "H x "W x "D 335 lbs
T140-1 36"H x 34"W x 79"D 0 lbs

Key Buying Criteria:

  • Belt Drive Blower: Higher static and flow performance.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Four-Way Adjustable Airfoil Grille: For precision direction of air back into facility. Maximum air flow design for light to medium applications: Improves operating efficiency.
  • Prewired to Junction Box: For fast, easy installation.
  • Cleanable Filters: Reduces filter replacement costs.

Suitable For:

Top 5 contaminants/processes/applications:

  • Airborne viruses
  • Atmospheric dust
  • Wildfire smoke
  • Cardboard dust
  • Dust from new construction
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
T140-1 3600 CFM 1400 RPM, air cleaner with:
  • (2) 4" (100mm) pleated 30% pre-filters
  • (2) 65% bag filters (66ft² each)
  • (1) 2HP motor, 208-230/460/3/60
  • 10 x 10 ball bearing belt drive blower
  • 1400 RPM
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety.
T140-2 3600 CFM 1400 RPM, air cleaner with:
  • (2) 4" (100mm) pleated 30% pre-filters
  • (2) 65% bag filters (66ft² each)
  • (1) 2HP motor, 575/3/60
  • 10 x 10 ball bearing belt drive blower
  • 1400 RPM
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety.

Frequently bought together these options:

Part # Qty Description
T140-95% 95% bag filter in place of std 65% bag.
T140-RMPF Reduced maintenance pre-filter option for T-140 unit.
  • Includes (2) plenums, mounting brackets, latches, & 2" (50mm) poly
Part # Qty Description
T140-3HP-1 3HP motor 4500 CFM option - 208-230-460/3/60 with (2) each, 83 ft2, 65% efficiency bag filters in place of standard bag filters.
T140-3HP-2 4500 CFM option 575/3/30 - with 2 each, 83 ft2, 65% efficiency bags and 2 each pleated prefilters. 3HP Motor
  • 1800 RPM
Part # Qty Description
T140-S-EXT Silencer Option for Standard T140 Unit.
Part # Qty Description
PG-3-AFS 0-3"liquid gauge, surface mounted pressure gauge for T140
PG-6 0-6" Magnahelic dial pressure gauge.
  • Surface mounted
Part # Qty Description
T140-EB 3/8 Eyebolts Option for Standard T140 Unit.
T140-Plenum Kit, reduced Maintenance Plenum, t-140.
Part # Qty Description
2AF1-9022 Easy Clean Bag Filter, 80% efficiency (24" x 24" x 22").
7FB6-5123-OEM 65% bag filter for T-140. (3 Hp only).
7FB9-0123-OEM 95% bag filter 83 ft2.
7FP3-0104 4" (100mm) replacement pre-filter, 30% efficiency for the following units:
  • EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, T-3000, Pac-91, & others (24" x 24" x 4")
7FP3-0104-AAF 4" (100mm) replacement pre-filter, 30% efficiency for the following units:
  • EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, T-3000, Pac-91, & others (24" x 24" x 4")
7FB6-5122-OEM Replacement 65% Bag Filter for the following units:
  • F70R T-3000, T-3500, T-4500 T-6000, T-7500, & T-140 units (24" x 24" x 22").
7FB9-0122 Replacement 95% Bag Filter for the following units:
  • F70R T-3000, T-3500, T-4500 T-6000, T-7500, & T-140 units (24" x 24" x 22")
ESMV-75 75% CLEANABLE extended surface main replacement filter.
ESMV-95 95% CLEANABLE extended surface main replacement filter.
